Multiple hot air circulation thermal bonding oven with low power consumtion

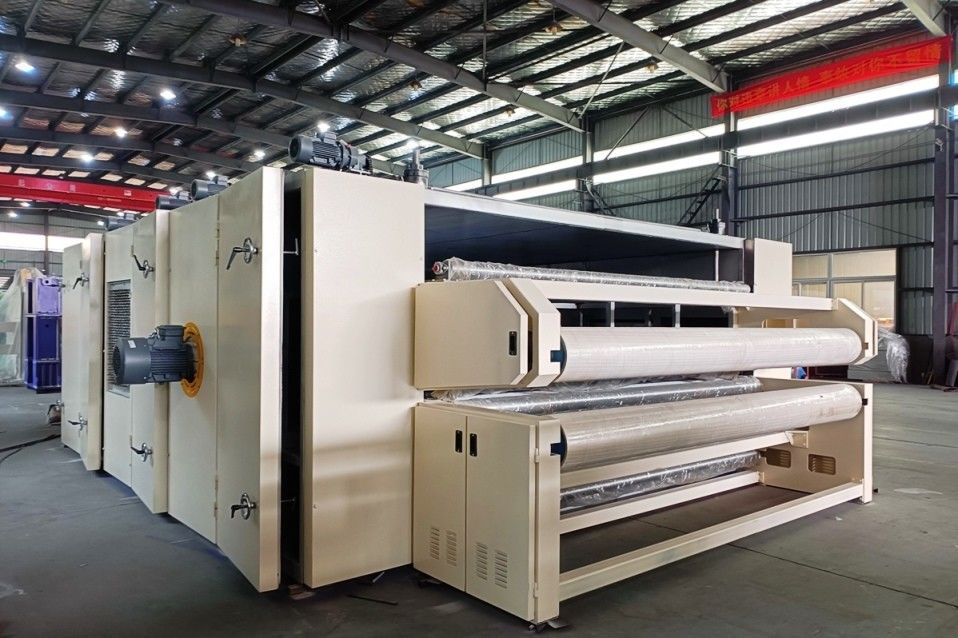

Ampliación de imagen : Multiple hot air circulation thermal bonding oven with low power consumtion

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	Sail

Pago y Envío Términos:

Cantidad de orden mínima:	1
Precio:	negotiable
Detalles de empaquetado:	Carga de contenedores
Tiempo de entrega:	60 días
Condiciones de pago:	T/T
Capacidad de la fuente:	5/Month

Contacto

Descripción detallada del producto

Tipo:

Horno de adherencia térmica

Características:

aire caliente a través del tipo, cinturón de fibra de vidrio

Peso del producto disponible:

100 - 3000 GSM

Área de calefacción:

6 - 10 metros (se puede personalizar)

Resaltar:

low power consumption thermal bonding oven

hot air circulation non woven oven

energy efficient thermal bonding machine

Thermo bonding Oven with Double Conveyor

Oven for making thermal bonded nonwovens

Thermobonding oven with double layer conveyor utilizes the process of hot air penetration to heat fiber webs containing low-melting point fibers, achieving bonding and reinforcement for the web formation.

Working width: 2300mm～4000mm

Available products weight: 100～3000 GSM

Heating area: 6 – 10 meters (customization)

Application

Thermobonding oven with double layer conveyor is used in nonwoven production lines and is particularly suitable for producing various high GSM and high-density products.

Specifications

Working width	2300mm～4000mm
Available products weight	100～3000 GSM
Optional Heating method	Boiler with thermal oil
	Burner (gas, diesel, LPG etc)
	Electrical radiator
Structure features	Single floor ; Double conveyor
Heating area	6 – 10 meters (customization)
Cooling area	2 meters (customization)

Features

Thermobonding oven comes with a single-layer structure with two separate upper and lower hot air channels.
Circular airflow allows for efficient and uniform heating, resulting in excellent product quality.
Functions include automatic and precise temperature control, independently adjustable air volume and heating power.
Multiple insulation design helps in energy saving.
Optional heating methods are burner, boiler, electric heating.
